 VLan-Std is a turnkey system for recording and archiving telepone
calls. Targeted at small to medium businesses, this cost effective system is expandable from 4 to 16 channels in increments of 4, as each logger box is equipped with four channels. It is compatible with
analog phone lines and can be connected to either the trunk side or the station side of a phone system.
The logger also needs to be connected to one or more host computers via a dedicated or non-dedicated Ethernet
local area network (LAN). The logger relies on the host computer for storing recorded data, as it has no internal

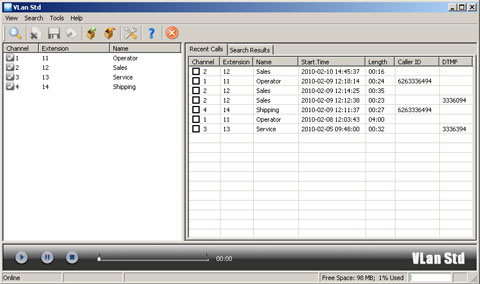

mass storage of its own. Recorded data can be accessed only from the host computer on which the data is stored, and by using the provided application software.

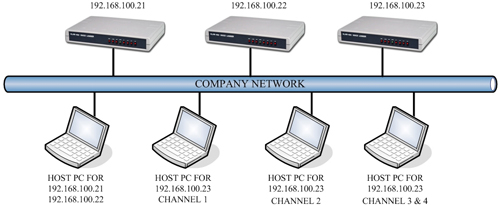

If desired, each individual channel may be assigned to a different host computer so that users may share the
system with maximum privacy, as each user can only access the data stored on his/her own PC. It is, of course, also possible to assing two or more channels to a single host computer as illustrated below:
|
