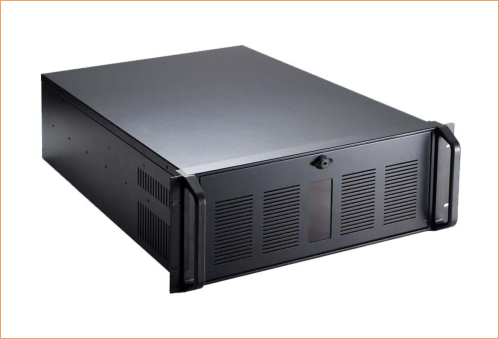

VLAN EDiL™ Network Voice Logger

• 4 - 256 ports • Analog, digital, E1/T1, VoIP • Industrial PC based • HTML5 browser based management • SQL database open CTI support • 19” rack mount (1U/2U/4U) VLAN EDiL is a highly versatile voice logger system that can be equipped with a variety of interface cards to accommodate different needs, such as: Analog Interface Cards • LD-409 (4 ports) • LD-809 (8 ports) • LD1609 (16 ports) • LD-2409 (24 ports) • VLAN-400 card (4 ports) • VLAN-164 card (64 ports) Digital Interface Cards • NGX800 (8 ports) • NGX1600 (16 ports) • NGX2400 (24 ports) E1, T1, ISDN PRI Cards • DP-3209 (1x T1/E1) • DP-6409 (2 x T1/E1) • DT-6409 (2 x T1/E1) VoIP Interface • IPX-C card • HPX software + HPXMEDIA license Please contact us so that we can custom build the system for your particular application.
Other Voice Logger Models CallPad • 1 analog port • Standalone operation • Desktop under-phone design • Local data access (LCD + keypad) • Network data download • Central server optional LogMaster • 1 - 8 analog ports • Standalone with internal memory • Memory easily expandable • Local data access • Network data access • Central server optional VLAN-SD • 1 - 4 analog ports • Standalone operation • External USB drive support • Live monitoring • Network data access • Central server optional VLAN • 1 - 64 analog ports • Host PC required • Live monitoring • Network data access • Record files in WAV format • Selectable data compression rate
