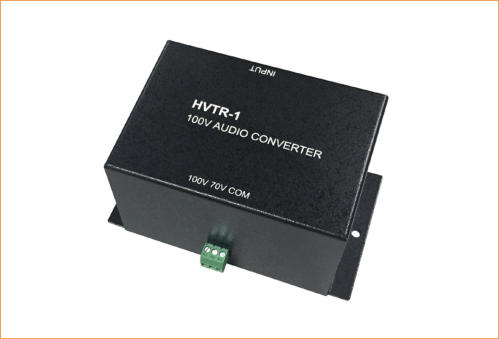

HVTR1 Constant-Voltage Audio Transformer

• Low-side Impedance: 4 or 8 Ohm • High-side Voltage: 70V/100V • Power: 30W max. • Industrial grade metal enclosure • Detachable screw terminal block • Dimensions: 100mm x 70mm x 63mm The HVTR1 is a constant-voltage audio transformer for bridging between low impedance and high voltage audio devices so that low impedance amplifiers can drive high voltage speakers, or high voltage amplifiers can drive low impedance speakers. Sometimes a pair are used to allow low impedance amplifiers to drive low impedance speakers over a long distance. Typical Application Diagrams
