ELETECH

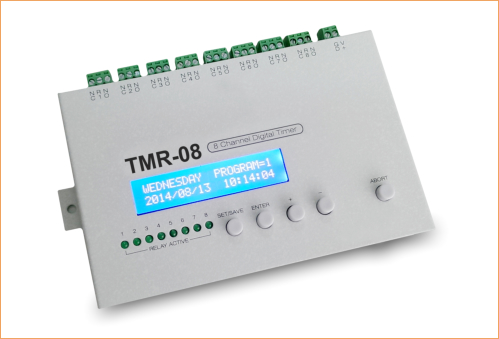

TMR-08 7-Day Programmable Switch Timer

8 internal mechanical SPDT relays 10A contact rating Up to 7 different programs One program per weekday One-second timing resolution Daylight Saving Time configuration TMR-08 is a 7-day programmable switch timer with 8 internal relays for general purpose apparatus control. The relays can be programmed to turn on/off at specific times of the day, multiple times a day and in any order. Up to 7 24-hour programs can be set up and assigned to each day of the week. For example, program 1 assigned to Monday through Friday, program 2 assigned to Saturday and Sunday, and program 3 reserved for holidays. Another example is for each weekday to have a different program such as program 1 for Monday, 2 for Tuesday, 3 for Wednesday, … and 7 for Sunday. Housed in a rugged metal enclosure with mounting brackets, TMR-08 is easy to program and use. No computer is needed for operation, and programming is done entirely via the LCD interface. Programs are saved in non-volatile memory, and there is internal backup power to keep the realtime clock/calendar running through short power outages.
Downloads TMR-08 User’s Manual Typical Applications TMR-08 is typically used along with QuikWave audio players for the following applications: Break time announcements at factories Class time announcements at schools General time announcements Worship time reminder
