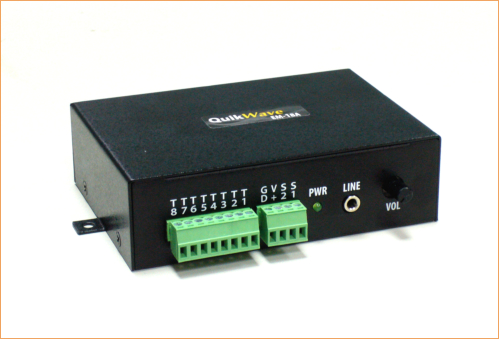

EM-18A QuikWave Audio Player

• Mono WAV, AM radio quality • Trigger Input: 8 • Relay Output: 0 • Serial Port: 1 (RS-232/RS-485) • Input Voltage: 12 - 30 VDC • Output Power: 15W (mono) EM-18A is a rugged industrial audio player designed for the most demanding jobs. Much like a CD player playing sound tracks from a CD, EM-18A plays sound files from an SD/SDHC memory card but without the moving parts to wear and tear. The file format support is 8-bit uncompressed WAV files with sampling rate up to 22.05KHz. Although the sound quality is not as good as our MP3 players, it is adequate for most voice playback applications. Audio programming for the unit is as simple as copying sound files to the memory card via a card reader attached to the computer. The type of memory cards used, the SD/SDHC cards, are most popular and readily available in a number of capacities to suit different needs. Hundreds of tracks totaling hours of audio can be stored onto an inexpensive card for instant playback. Powered by a single voltage DC power supply, EM-18A features a high efficiency low heat class D power amplifier with thermal and short circuit protection (automatic recovery). A line level output is also available for feeding an external amplifier if desired. Audio playback can be triggered with a variety of methods such as push buttons, motion/alarm sensors and PLCs. EM-18A can be easily configured to work in different operation modes such as: • Start the playback when the trigger is applied or removed. • Allow the playback to be interruptible by another trigger or not. • Play the sound just once or loop it till the trigger is removed. Housed in a compact yet rugged metal case, EM-38A can be easily secured into place with the integrated mounting tabs on each side of the unit. Wiring is done via screw terminals and requires only a small screw driver. The screw terminals are unpluggable, making it fool-proof to replace the unit in the field when necessary. Optional Ethernet/WiFi Based Device Control QuikLink WF-01 provides WiFi based device control via the serial port. It can function as either an access point (with SSID) or a bridge to a 2.4GHz WiFi network.
Downloads EM-18 User’s Manual Typical Applications Museum Audio: Water Shed Product Advertising: Arctic Splash Audio Tour Guide: Hollywood Transportation: Platform Elevator: Announcements Parking Garage: Need Assistance Warning/Safety: Crosswalk Industrial Control: Purge Activated Vending Machine: Zolta Background/Onhold: Company Optional Accessories Power Amplifier AMP-1502HV AMP-1502HV is a high efficiency class D power amplifier with a maximum output of 15W per channel in stereo mode, or 55W in BTL mono mode. Constant-Voltage Transformer HVTR1 bridges between low impedance and high voltage audio devices so that low impedance amplifiers can drive high voltage speakers, and vice versa. Digital Switch Timer TMR-08 TMR-08 is a 7-day programmable switch timer with 8 internal relays for triggering QuikWave audio players at preset times of the day, once or multiple times a day and in any order. WiFi Access Unit WF-01 QuikLink WF-01 provides WiFi based device control via the serial port. It can function as either an access point (with SSID) or a bridge to a 2.4GHz WiFi network.
