MR-08/MR-16 AM/FM Radio Receiver

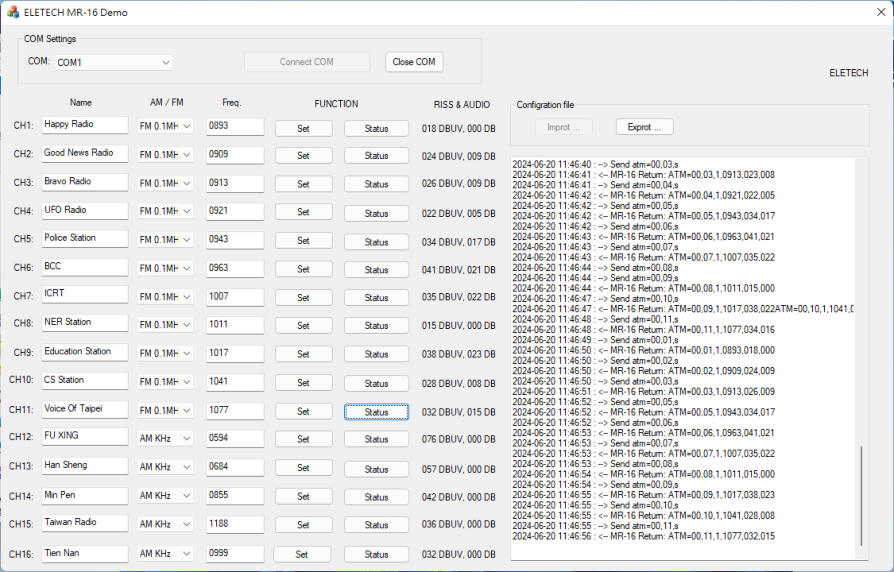

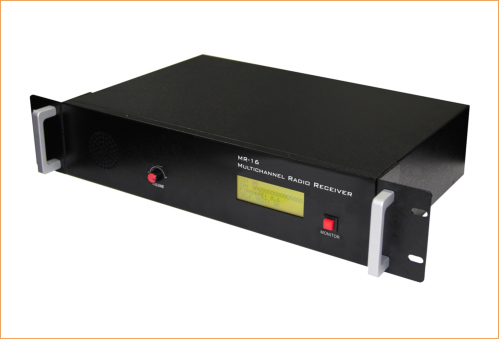

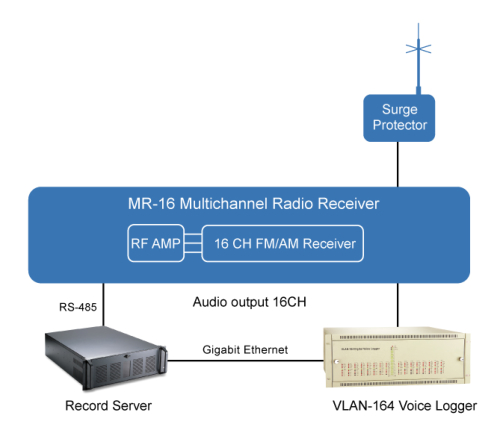

AM/FM with digital tuning Automatic frequency control (AFC) Automatic gain control (AGC) Adaptive noise suppression System status LCD display RS-485 control interface MR-08 and MR-16 are AM/FM radio receivers with 8 and 16 channels respectively. They are usually integrated with a voice logger to form a fully automated radio receiver system for surveillance, monitoring and/or logging purposes. The unit is configured/controlled via RS-485 and multiple units can be cascaded. A built-in LCD display shows current system status such as power up self test results and channel tuning status (frequency, RSSI and audio quality). The analog audio outputs are usually fed to a separate voice logger for 24/7 recording. The receiver incorporate highly advanced modular components with precise digital tuning and minimized EMI interference. The 19” 2U rack mount housing conforms to industry standards for quick and easy installation. Typical System Structure Diagram

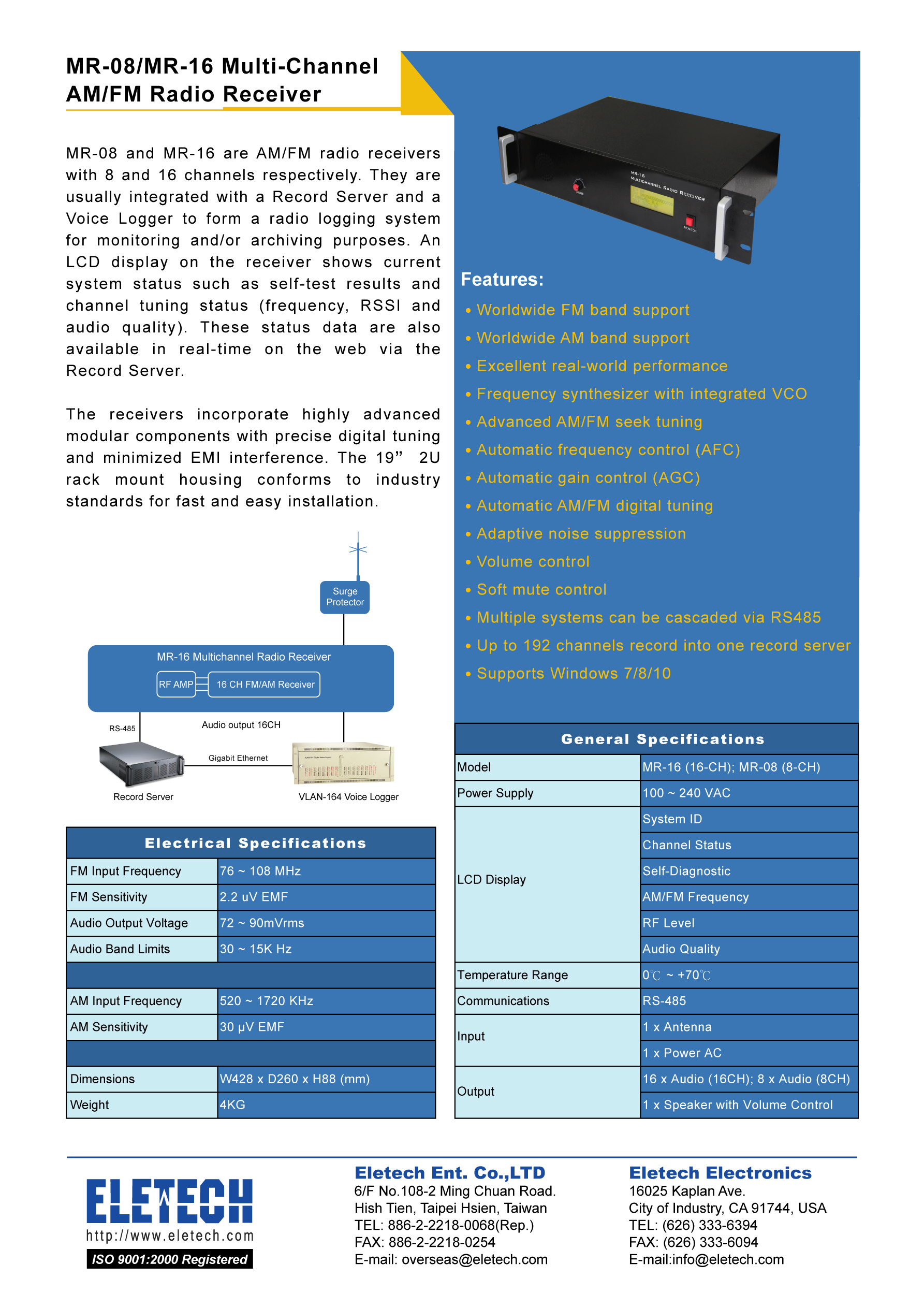

Downloads MR-08/16 Product Flyer System Specifications AM Band: 520 - 1702 KHz AM Sensitivity: 30 uV EMF FM Band: 76 - 108 MHz FM Sensitivity: 2.2 uV EMF Audio Output Level: 72 - 90 mVrms Audio Band Limits: 30 - 15K Hz Control Interface: RS-485
