QuikCall™ Wireless Calling System
QuikCall wireless calling system consists of RF (radio frequency) transmitters and receivers for playing
voice messages activated by wireless push buttons or industrial interfaces. One receiver can work with
multiple transmitters and play a different or the same message, depending on how the transmitters are
configured. It is also possible to employ multiple receivers at the same location, each serving a different
group of transmitters.

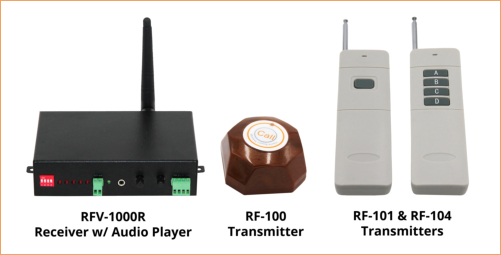

QuikCall transmitters are available in different styles for a variety of applications. Although typically
equipped with push buttons, special version transmitters are available for interfacing with factory
equipment for voice alert/feedback purposes. While the RF-100 is battery powered only, the RF-101 and
the RF-104 can operate with either battery or DC adapter.
The RFV-1000R receiver has integrated audio player for playing pre-recocrded message files from an
installed SD/SDHC memory card. The audio output can either drive speakers directly via the built-in
power amplifier, or be sent to a PA system for broadcasting. The receiver can also be configured to
process transmitter requests in various ways for different applications.
Receiver & Speaker Integration
The RFV-1000R receiver is available either by itself or integrated with
a speaker. There are two models with integrated speaker:
RFV-1000RS (w/15W Speaker)
110mm (W) x 140mm (D) x 174mm (H)
RFV-1200RS (w/25W Speaker)
145mm (W) x 195mm (D) x 244mm (H)
