RM-31A QuikWave Audio Player

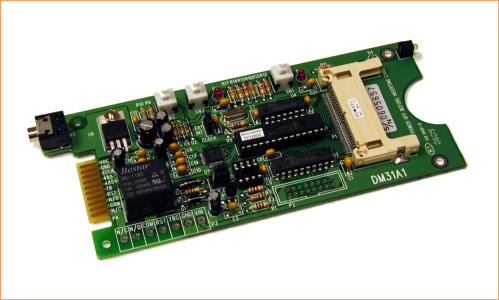

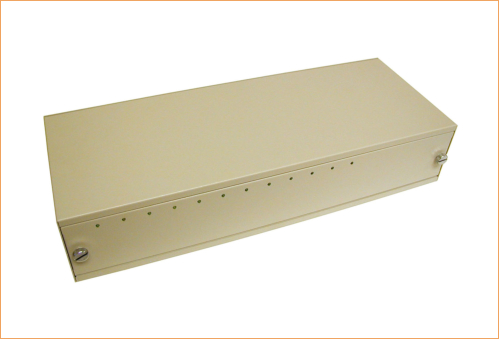

• Audio: stereo WAV, CD quality • Triggers: 1 per sound card • Relays: 1 per sound card • Serial Port: 1 per sound card • Supply Voltage: 110/220 VAC • Output: line level RM-31A is a 19” 2U rack mount digital audio repeater system designed for general purpose applications. Up to 12 sound cards (model number DM-31A, sold separately) can be installed and operated independently. Each sound card has its own trigger input, audio output, and RS-485 serial port. There is also an on- board power relay that’s activated automatically during the audio playback, so that an optional external device can be control synchronously if needed. Sync-a-Gang Technology™ The system supplies a master clock to all cards to keep them in perfect synchronization with each other at all times - a crucial requirement in many applications. Other than the master clock, the cards operate totally independently with each other. Each card has its own input and output. For your convenience, the chasis also provides a common connector for the RS- 485 interface. RM-31A has a built-in 110/220 VAC auto-sensing switching power supply with detachable power cord. The two mounting brackets can be removed if the system is not to be rack mounted. Physical dimensions are 17.3” (L) x 7” (W) x 3.5” (H) with the mounting brackets removed.
