Downloads VLAN-200R User’s Manual Optional Accessories Microphone VCU-100 • Omni-directional • High sensitivity • Adjustable gain • Meeting/conference recording • Security surveillance recording

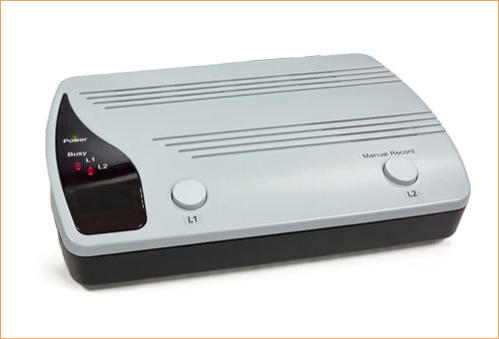

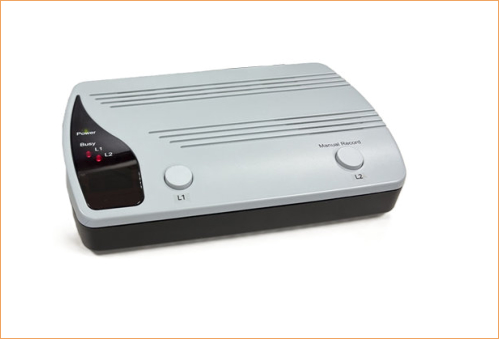

VLAN-200R™ Network Voice Logger

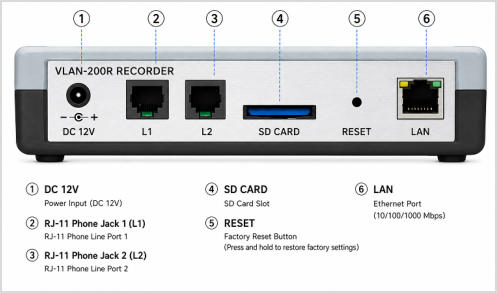

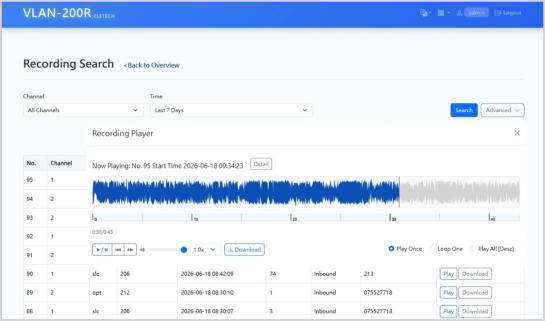

• 2-port analog ports • Analog, 2-way radio • Port 1 features a built-in mixer for two-way radio recording • Standalone with 64GB+ internal memory • MP3 format (1 GB stores 149 hours of recordings) • Web browser based management The VLAN-200R is a compact professional radio recorder with a built-in PTTR mixer that automatically combines Tx and Rx audio into a single recording. Its Linux-based architecture delivers reliable 24/7 operation while eliminating the need for an external audio mixer. Features • Internal 64GB memory expandable up to 2GB • No host PC required for operation • Record files compressed and saved in MP3 16 Kbps • File search by caller ID, date, time, length, and dialed number • Browser based system access with password protection • Search, play and email audio files directly from the browser interface • Supports automatic time synchronization via standard NTP servers • Compact and lightweight: 181 × 118 × 30 mm, approximately 270 g Panel Description & software
