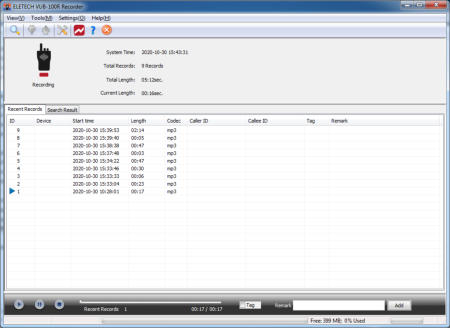

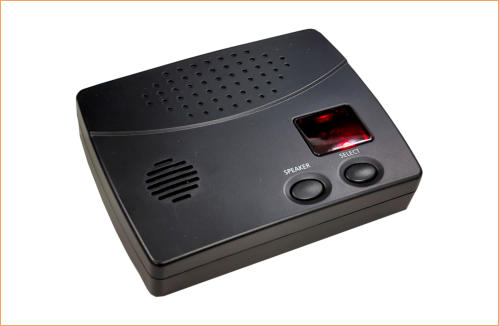

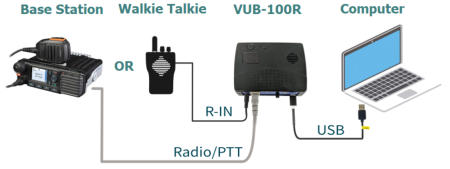

•Single-channel recorder•Records via USB to a host computer•Voice activated recording•Signal strength indicator•Separate RX/TX gain control•Built-in monitoring speakerVUB-100R is a sinlge-channel two-day radio (walkie talkie) recorder designed for monitoring and/or logging purposes. Recording is voice activated and files are saved via USB to a host computer. Files can then be accessed on the host computer or from mobile devices.In order to achieve optimal recording quality, signal levels must be adjusted properly. The unit offers separate RX/TX gain control with both hardware and software signal strength indicators to facilitate the adjustment.VUB-100B draws power from the host computer via a MicroUSB connection. Its compact size and low power consumption makes it suitable for both mobile and stationary applications. Software Features•Voice activated recording•Realtime recording status display•Realtime signal strength display•Add tag and remark to records•File search by date/time, tag and remark•Automatic storage space managementTypical Connection Diagram
DownloadsVUB-100R User’s ManualSystem Specifications•OS Support: Windows 7 and above•Host Interface : MicroUSB•Recording Mode : Voice Activated•Voice Codec: MP3 16 Kbps (about 14 hours/GB)•Signal Strength Hardware Indicator : Bi-color LED•Realtime Monitoring: Internal Speaker with ON/OFF Switch•Power Input : MicroUSB•Dimensions : 120 x 90 x 28 (mm)
