eALog

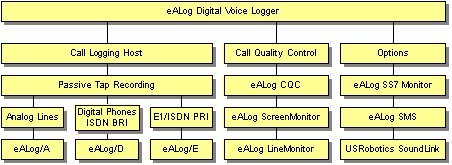

	*eALog Digital Voice Logger*

eALog is an open platform digital voice logger built with cutting edge technologies. It is capable of passively tapping into digital or analog phone lines for real-time call recording and/or monitoring without any noticeable interruption in the service. Recordings are stored internally and can be retrieved locally or remotely via telephone or LAN. eALog can be purchased as a turnkey system complete with application software, or with SDK (software development kit) for building your own system.

Features

* Open architecture with 8 ~ 256 channels per system
* Flexible recording modes: automatic, selective, on demand
* Compression schemes supported: GSM, Microsoft GSM, WAV, ADPCM, G.729A
* Advanced streaming technology ensures playback quality over LAN
* Real-time monitoring via LAN
* Versatile recording start methods: voltage change, network control, on/off hook,
D-channel, desktop access
* Supports DAT, DVD-RAM, NAS (network access storage) as backup device
* Optional utilities provide quality control for call centers (eALog CQC) and SS7 signal
monitoring for E1 trunk logging (eALog SS7Monitor)

Applications

* Banks, stock brokers, commodity brokers
* Call centers, radio dispatch centers
* Security alarm companies, emergency services
* Intelligence agencies, police stations, attorney offices
* Airport control towers, railroad stations, power plants

eALog SDK

eALog software development kit (SDK) supports VC++, VB, Delphi, and C++Build programming languages for implementing powerful functions on call recording, monitoring and administration tasks for call center applications.


	eALog Brochure


	*VCU-100 Concealed Microphone* The VCU-100 consists of a highly sensitive microphone and a pre-amplifier. It is an option for the voice loggers and usually used in conjunction with a video camera in security monitoring applications. The gain of the pre-amplifier is adjustable in order to obtain the best recording quality under all situations.
