ELETECH

VUB-100FM FM Radio Recorder

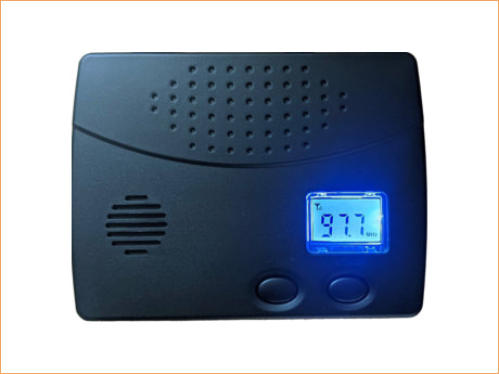

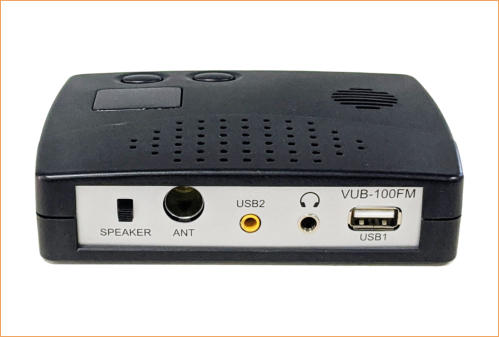

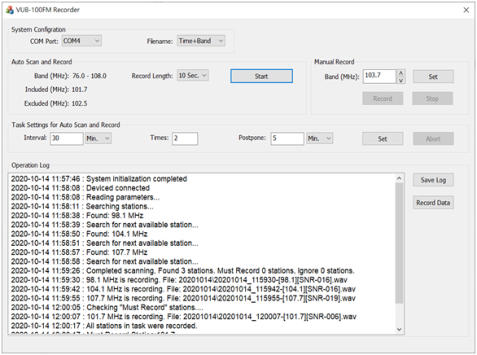

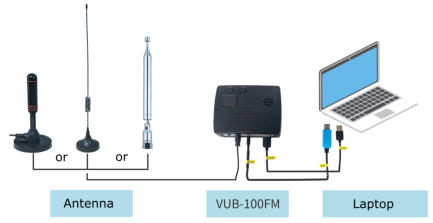

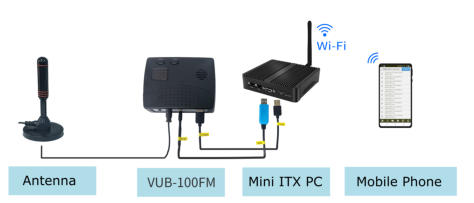

Single-channel FM radio recorder Host PC required for data storage LCD display of system status External antenna Internal monitoring speaker Suitable for mobile applications VUB-100FM is a sinlge-channel FM radio recorder designed for surveillance, monitoring and/or logging purposes. It can be set up to scan and record automatically or manually, and a host computer is required for data storage and system configuration. Once recorded, the data can be accessed on the host computer or from mobile devices (via WiFi). The LCD screen on the unit shows the current scanning frequency, while the built-in speaker allows realtime monitoring of the current radio station. These help greatly with both system operation and trouble shooting. VUB-100FM draws power from the host computer via a USB connection. Its compact size and low power consumption makes it suitable for both mobile and stationary applications. Software Features Auto scan and record with include/exclude list Manual record on a specific frequency Configurable task interval, starting time and execution times System operation log Data Access via Mobile Phone Laptop Application
Downloads VUB-100FM User’s Manual System Specifications Frequency Range: FM 76~108 MHz Frequency Accuracy : 0.1 MHz Operation Mode : Manual / Auto scanning and recording OS Support: Windows 7 and above Host Interface : USB Panel Operation : Frequency Tuning, Monitoring LCD Display : Frequency, Signal Strength Power Input : USB DC 5V Dimensions : 120 x 90 x 28 (mm)
