ELETECH

VUB-100T Desktop Telephone Recorder

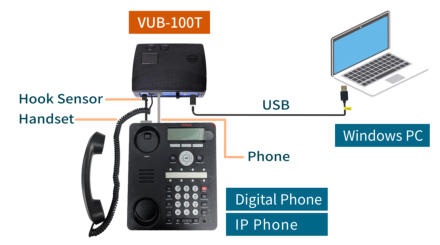

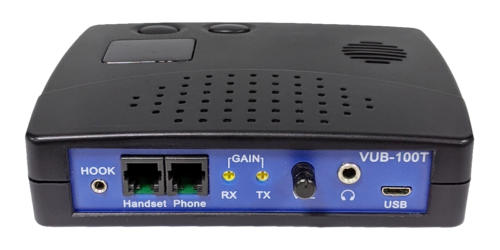

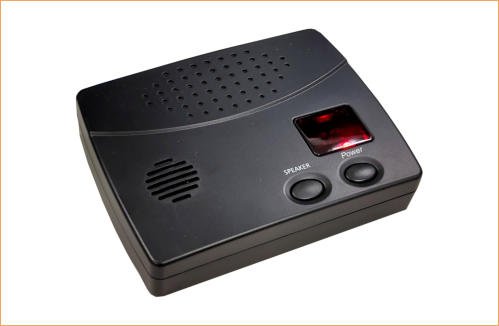

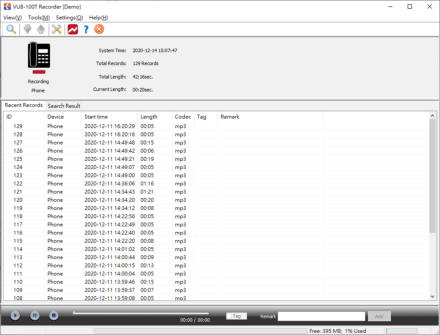

Single-line desktop design Works with analog/digital/IP phones VOX & HookSensor activation MP3 codec with RX/TX gain control Host PC required for file storage Built-in monitoring speaker VUB-100T is a sinlge-line telephone recorder designed for small to medium businesses such as banking institutions and insurance agencies. It is compatible with most telephones and headsets, capable of recording both analog and digital/IP lines with superb sound quality. Recording can be either voice activated (VOX) or hook sensor activated. Recorded files are saved in real time via USB to a host computer where they can then be accessed. In order to achieve optimal recording quality, signal levels must be adjusted properly. The unit offers separate RX/TX gain control with both hardware and software signal strength indicators to facilitate the adjustment. VUB-100T draws power from the host computer via a MicroUSB connection. Its compact size and low power consumption makes it suitable for both mobile and stationary applications. Software Features Voice or HookSensor activated recording Real-time recording status display Real-time signal strength display Add tag and remark to records File search by date/time, tag and remark Automatic storage space management Typical Connection Diagram
Downloads VUB-100T User’s Manual System Specifications OS Support: Windows 7 and above Host PC Connection: MicroUSB Activation Mode : VOX, HookSensor Voice Codec: MP3 16 Kbps (about 14 hours/GB) Signal Strength Hardware Indicator : Bi-color LED Real-time Monitoring: Internal Speaker with ON/OFF Switch Power Input : MicroUSB (from host PC) Dimensions : 120 x 90 x 28 (mm)
