ELETECH

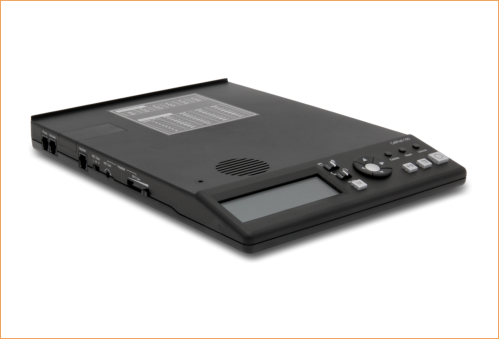

CallPad™ Desktop Telephone Recorder

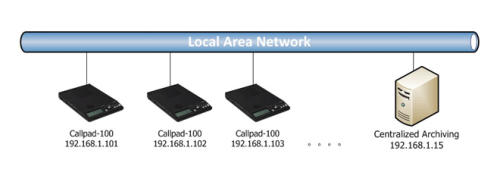

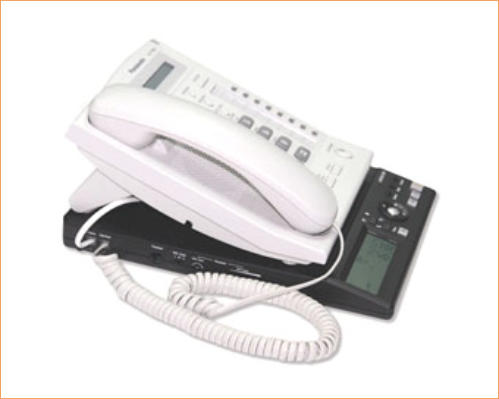

Single-line under-phone design Works with analog/digital/IP phones Built-in file storage Local data access (LCD + keypad) File download via network Central server optional CallPad is a standalone single-line telephone recorder designed to record telephone calls for small to medium businesses such as banking institutions and insurance agencies. It is compatible with most telephones and headsets, and is capable of recording both analog and digital/IP lines with superb sound quality. No host computer is needed for daily operation, although the system can optionally upload data to a remote server for centralized data archiving. By default CallPad records and saves all incoming and outgoing calls automatically. But it can also be configured to save only the calls that are deemed important by the user after the call has ended. The unit’s non-volatile memory can hold hundreds of hours of data even during power outages. To ensure data security the system employs advanced data encryption and password protected user access. Mounting holes are also provided for physically screwing down the unit to deter theft. CallPad features an innovative enclosure that can be placed underneath a typical office telephone set. In addition to saving desk space, this design also allows the logger to easily obtain analog audio signals by tapping into the phone’s handset, making it possible to record analog and digital phone lines with three modes of activation: manual, VOX and HookSensor. Manual Activation Recording is started/stopped by manually pressing a push button. VOX Activation (Voice Activated) Recording is started/stopped automatically based on the audio signal level. HookSensor Activation Recording is started/stopped automatically when the handset is lifted/put-back. This scheme is more reliable than Auto-VOX but requires the instllation of a magnetic hook sensor. A simple and intuitive user interface is offered through a large easy-to-read LCD screen, granting the user full system access right on his/her desktop. Unlike traditional multi-line voice loggers placed in the equipment room, CallPad is truly easy to install and convenient to use. Optional Centralized Storage
Available Models CallPad-100 Downloads CallPad-100 Flyer CallPad-100 User’s Manual Optional Accessories Microphone VCU-M & VCU-100 Omni-directional High sensitivity Adjustable gain Meeting/conference recording Security surveillance recording
